Aramid Insulation Paper for Motors, Transformers & Electrical Insulation
100% meta-aramid electrical insulation paper with high dielectric strength, flame resistance, and UL-recognised 220°C insulation performance.
Product Overview
High-Temperature Aramid Insulation Paper
3A Associates’ Aramid Insulation Paper is a 100% meta-aramid electrical insulation paper designed for demanding insulation systems in motors, generators, transformers, and power equipment.
With strong dielectric properties, mechanical toughness, and flame resistance, the paper provides dependable electrical insulation in applications exposed to elevated temperatures and demanding operating conditions.
It is UL-recognised to the 220°C insulation class and carries a UL94 V-0/VTM-0 flame rating. The material also offers excellent chemical stability against varnishes, adhesives, transformer oils, lubricating oils, and refrigerant oils commonly encountered in electrical equipment.
Available in standard thicknesses up to 0.76 mm, 3A Aramid Insulation Paper can be selected according to the electrical, thermal, and mechanical requirements of the insulation system.
Key Features
1. UL-Recognised 220°C Insulation Class
Designed for high-temperature electrical insulation systems and capable of withstanding short-term thermal overload.
2. High Dielectric Performance
Provides reliable electrical insulation for motors, generators, transformers, and power equipment.
3. Flame Retardant & Self-Extinguishing
UL94 V-0/VTM-0 rated material that does not support combustion.
4. Excellent Chemical Stability
Resistant to varnishes, adhesives, transformer oils, lubricating oils, and refrigerant oils.
5. Multiple Thickness Options
Available in standard thicknesses up to 0.76 mm for different electrical insulation requirements.
Designed For
-
Motor slot, phase and layer insulation
-
Generator insulation systems
-

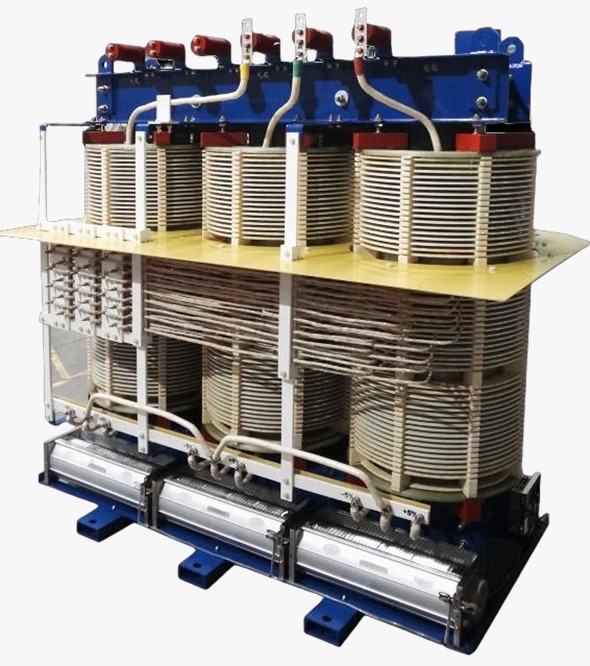

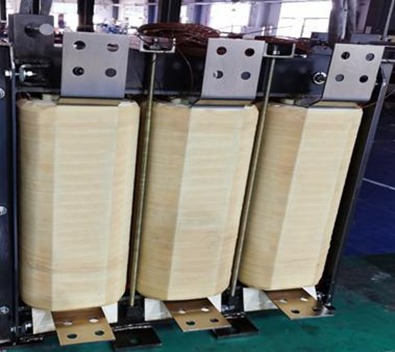

Transformer winding and interlayer insulation
-
UPS and data centre power equipment
-
Converter and power electronic equipment
-
High-temperature electrical insulation systems
Benefits
-
Supports reliable insulation at elevated operating temperatures
-
Helps reduce fire risk in enclosed electrical equipment
-
Performs reliably in oil-filled insulation systems
-
Compatible with commonly used varnishes and adhesives
-
Provides mechanical toughness alongside electrical insulation
-
Offers thickness options for different insulation designs
ADVANTAGES OF 3A ARAMID HONEYCOMB
UL-recognised 220°C insulation performance
UL94 V-0/VTM-0 flame-retardant rating
Strong dielectric and mechanical properties
Excellent resistance to oils, varnishes and adhesives
Available in standard thicknesses up to 0.76 mm
Consistent performance across demanding electrical applications
Real-World Use Cases
Traction motor slot and phase insulation
Generator slot and layer insulation
Transformer winding and interlayer insulation
Oil-filled transformer insulation systems
UPS and data centre converter insulation
General high-temperature electrical sheet insulation
Send Enquiry
Request Aramid Insulation Paper Specifications
Share your required thickness, thermal class, and application details, and our team will help you identify the appropriate aramid insulation paper for your insulation system.
